Top Entry Bag Filter Housing

Short Description:

Best sealing design suitable critical filtration demand.

Precision casting head to reduce flow pressure loss.


Product Detail

Product Tags

TF Series
Top Entry Bag Filter Housing

- Best sealing design suitable critical filtration demand
- Precision casting head to reduce flow pressure loss
- Easy cleaning for your next job
- Design according to ASME standard
- Cover firmly seals and holds the filter bag in place
- Four eyebolts for tight closure and stable construction
- Superior bag sealing with no bypas

Top Entry Bag Filter Housing.1
Top Entry Bag Filter Housing2
Top Entry Bag Filter Housing3
Top Entry Bag Filter Housing4
Top Entry Bag Filter Housing6
Top Entry Bag Filter Housing5
Top Entry Bag Filter Housing7

Top entry bag filter housings are designed to give you a perfect 360 degree sealing of your filter bags, to ensure no by passes. It is suitable for high demand specification filtration processes. We use precision casting head to reduce pressure loss. Top Entry bag filter adopts a top-in-low-out filtration, liquid flows from the top of the filter bag to be evenly distributed to the surface of the whole filter bag, making the basically consistent fluid distribution, the filter bag is less negatively affected by turbulence, good filtering effect and long service life. Bag Filter proved to be most effective in following applications due to easy handling and cost effective as compared to other traditional system likes filter press & self cleaning system. - Chemicals Filtration - Petrochemicals Filtration - DI Water Application in Semiconductors & Electronic Industry - Food & Beverage - Fine Chemicals Filtration - Solvent Filtration - Edible Oil Filtration - Adhesive Filtration - Automotive - Paint Filtration - Ink Filtration - Metal Washing

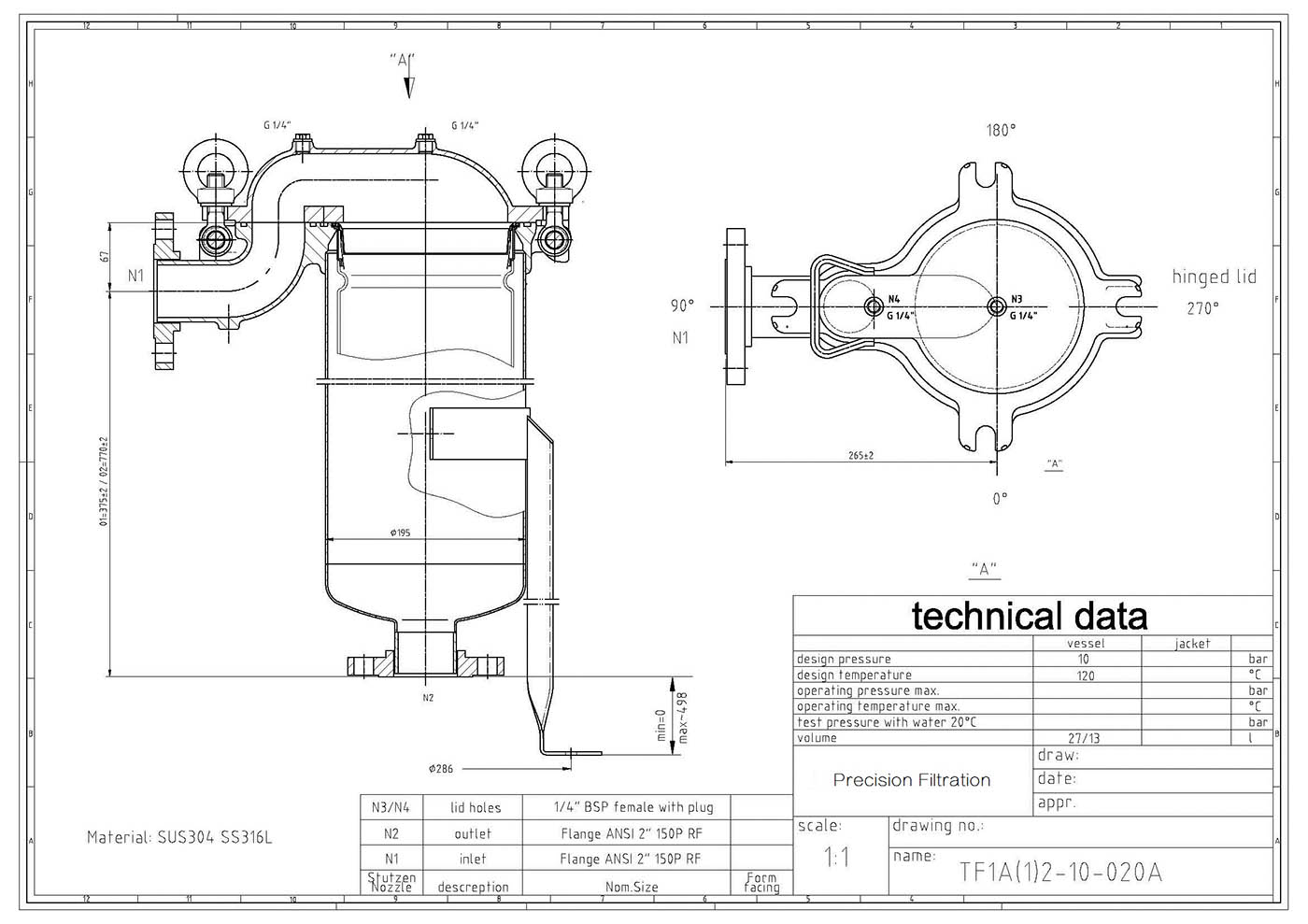

Type No. TF1A1-10-020A TF1A2-10-020A
Filter Bags Size size 01 size 02
Filter Area 0.25m2 0.50m2
Theoretical Flow Rate 20m3/hour 40m3/hour
Maximum Operating Pressure 10.0bar 10.0bar
Maximum Operating Temperature 120℃ 120℃
Material of Construction All Wetted Parts Type 304 or 316L stainless steel
Restrainer Basket
Seal Material Buna, EPDM, Viton, PTFE, Viton+PTFE
Standard Inlet/Outlet 2” flange 2” flange
Surface Finish Glass Bead Blasted (standard)
Filter Volume 13.0 litres 27.0 litres
Housing Weight 20kg (approx.) 25kg (approx.)
Installation Height 98cm (approx.) 181cm (approx.)
Installation Space 50cm x 50cm (approx.) 50cm x 50cm (approx.)
