Side Entry Bag Filter Housing

Short Description:

Side entry design

Four housing sizes 01#, 02#, 03#, 04#

Product Detail

Product Tags

SF Series
Side Entry Bag Filter Housing

- Side entry design
- Four housing sizes 01#, 02#, 03#, 04#
- Versatile design for convenience handling
- Basket with Viton profile gasket for sealing
- Swing eye bolt closure construction
- Unique design for perfect bag sealing
- Fix perfectly with all standard bags
- Non code design

Side Entry Bag Filter Housing6
Side Entry Bag Filter Housing7
Side Entry Bag Filter Housing5
Side Entry Bag Filter Housing1
Side Entry Bag Filter Housing4
Side Entry Bag Filter Housing2
Side Entry Bag Filter Housing3

Side entry bag filter housing is designed to give you convenience in handling your filtration process, by having an easy opening mechanism and a bag filter fixing ring for ensuring good sealing. It is suitable for general filtration requirements in all industrial applications which handle low to medium viscosity. Side entry bag filter housing is a pressure filter device, mainly composed of housing body, casting cover and restrainer basket. Side entry bag filter presses liquid media to go through pipe into housing body, filter bag is supported by restrainer basket, producing the ideal solid-liquid separation to achieve filter effect. Different filtration accuracy depends on micron rating of filter bags. Bag Filter proved to be most effective in following applications due to easy handling and cost effective as compared to other traditional system likes filter press & self cleaning system. - Chemicals Filtration - Petrochemicals Filtration - DI Water Application in Semiconductors & Electronic Industry - Food & Beverage - Fine Chemicals Filtration - Solvent Filtration - Edible Oil Filtration - Adhesive Filtration - Automotive - Paint Filtration - Ink Filtration - Metal Washing

Vessel Type SF1A1-10-020A SF1A2-10-020A SF1A3-21-040B SF1A4-21-040B
Filter Bags Size Size 01 Size 02 Size 03 Size 04
Filter Area 0.25m2 0.50m2 0.09m2 0.16m2
Theoretical Flow Rate 20m3/hour 40m3/hour 6m3/hour 12m3/hour
Maximum Operating Pressure 10.0bar 10.0bar 21.0bar 21.0bar
Maximum Operating Temperature 120 Deg C 120 Deg C 120 Deg C 120 Deg C
Material of Construction All Wetted Parts SS304 or SS316L
Restrainer Basket
Seal Material Buna, EPDM, Viton, PTFE, Viton+PTFE
Standard Inlet/Outlet 2” flange or BSP 2” socket BSP 1 1/2” socket
Surface Finish Glass Bead Blasted (standard)
Filter Volume 15.5 litres 27.0 litres 3.0 litres 4.5 litres
Housing Weight 11kg (approx.) 16kg (approx.) 4kg (approx.) 5kg (approx.)
Installation Height 98cm (approx.) 181cm (approx.) 59cm (approx.) 90cm (approx.)
Installation Space 50cm x 50cm (approx.) 25cm x 25cm (approx.)

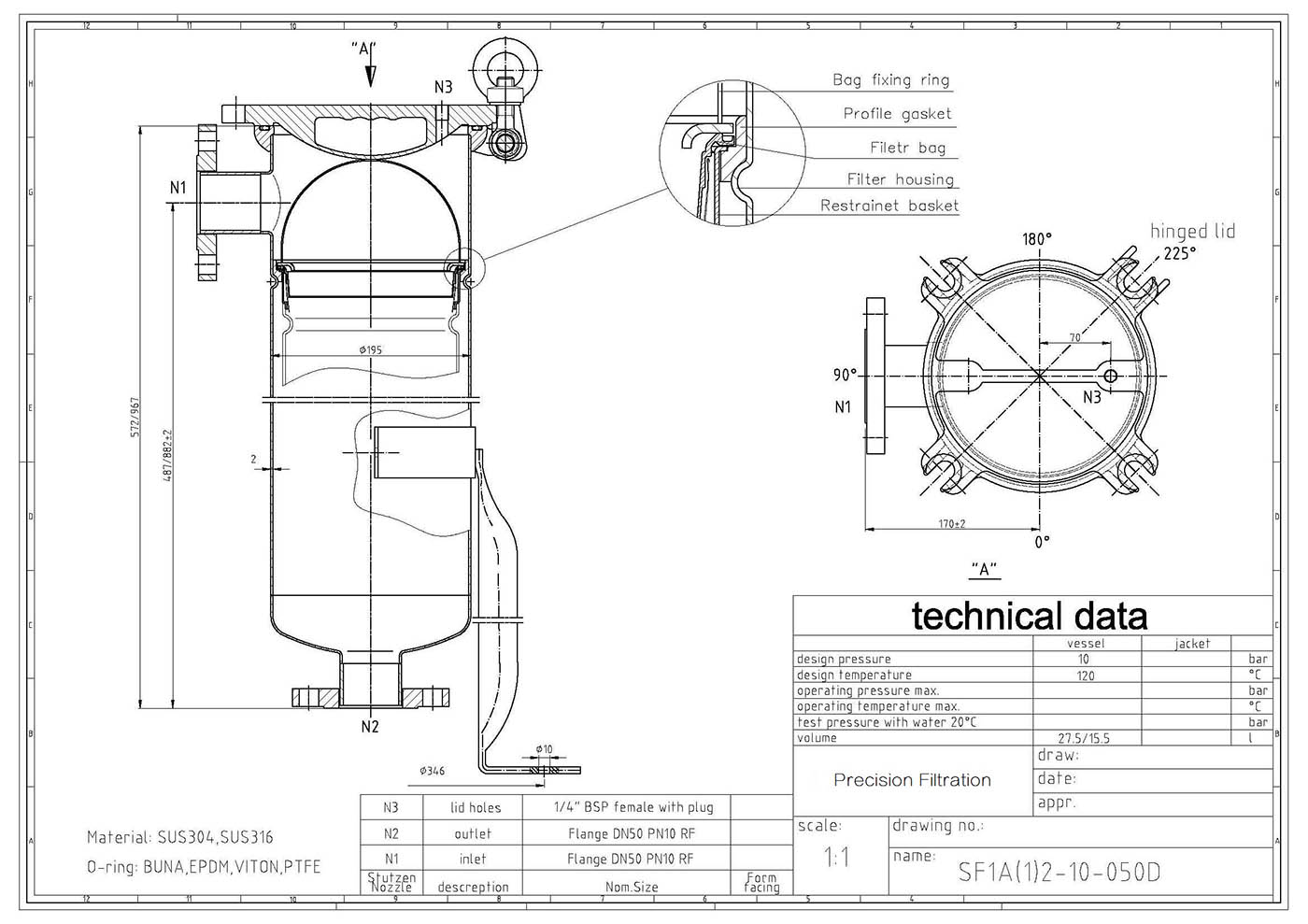

Side Entry Bag Filter Housing02
