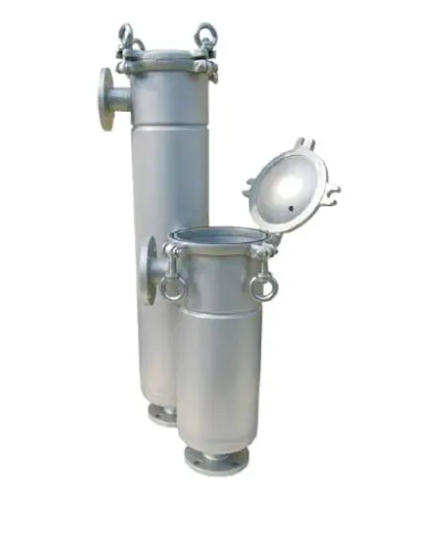

A side entry bag housing filter delivers a superior combination of cost-effectiveness and operational efficiency. This specific bag filter housing design directly reduces your plant’s downtime. It also lowers overall maintenance costs, making it a smart choice for a wide range of industrial applications.
Why a Side Entry Bag Housing Filter is a Smarter Investment
Choosing the right filtration system impacts your plant’s efficiency and bottom line. A side entry bag housing filter, like the SF Series, offers distinct advantages that solve common operational headaches. You will see improvements in safety, product quality, and cost savings.
Minimize Product Loss During Change-Outs
Every drop of your product counts. Traditional top-entry filters can cause significant product loss. When you lift a used bag from a top-entry housing, unfiltered liquid trapped inside often spills back into the filtered product. This contaminates your clean batch and wastes valuable material.
The SF Series side entry bag housing filter solves this problem. Its design allows liquid to enter from the side, so the filter bag remains upright and fully contained within the housing. During a change-out, the dirty bag is easily removed without tipping, keeping unfiltered liquid from spilling. This simple design change protects your product purity and saves you money.
Accelerate and Safeguard Bag Replacement
Safety and speed are crucial in any industrial plant. Changing filter bags can be a slow and physically demanding task, leading to downtime and potential worker injury. The horizontal access of a side entry design makes the process much safer and more efficient.
A Note on Operator SafetyAn ergonomic design is not just a luxury; it’s a necessity for protecting your team. It directly reduces the physical toll of maintenance tasks.
This design provides significant ergonomic benefits for your technicians. It helps:
- Alleviate strain on an operator’s back, arms, and shoulders.
- Allow for zero-gravity handling, reducing the risk of repetitive strain injuries.
- Prevent musculoskeletal disorders (MSDs) linked to lifting heavy objects.
Features like secure swing bolt closures on the SF Series allow your team to open and close the housing quickly. You no longer need special tools, which speeds up the bag replacement process. This gets your line back up and running faster while protecting your workers from injury.
Guarantee a Perfect, Bypass-Free Seal
What good is a filter if liquid can sneak around it? This problem, known as bypass, happens when a filter bag does not seal perfectly inside the housing. Even a small gap can allow contaminants to pass through, compromising your final product quality.
A high-performance side entry bag housing filter creates a positive, bypass-free seal every time. The SF Series uses an innovative bag filter fixing ring and a durable Viton profile gasket. This combination ensures the filter bag is held securely against the housing. Designs with a molded top flange or a stainless steel ring provide a reliable seal that prevents any liquid from bypassing the filter media.
Think of it like checking a tire for a slow leak. Industries use tests like the pressure decay test to confirm a filter housing’s seal is perfect. This ensures no air or liquid can escape, guaranteeing that 100% of your product flows through the filter, not around it.
Handle High Flow Rates with Ease
Your plant operates at a specific pace, and your filtration system must keep up. Many industrial processes require high flow rates that can overwhelm standard filters. This can lead to high differential pressure, which is the difference in pressure between the inlet and outlet. High differential pressure signals a clogged filter and reduces efficiency.
The SF Series is engineered to manage high flow rates without a drop in performance. A standard single bag filter housing can effectively manage flow rates up to 40 m³/h. The internal design of a side entry housing creates a smooth flow path. This path actively reduces turbulence, which keeps the differential pressure low even when your system is running at full capacity.
Many industries rely on this capability, including:
- Water Treatment
- Petrochemicals
- Food and Beverage
- Paint and Ink Manufacturing
This robust performance ensures your process runs smoothly without unexpected interruptions from your filtration system.
Essential Features for Maximum Performance
The design of a filter housing is only half the story. The materials, construction quality, and integrated features determine its true value and long-term performance. When you invest in a new filtration system, you must look for specific features that guarantee reliability, safety, and efficiency.
Demand Robust Material and Construction
Your filter housing is a pressurized vessel that must withstand constant operational stress. Inferior materials or poor construction can lead to leaks, corrosion, and catastrophic failures. A high-quality side entry bag housing filter is built from superior materials to ensure a long service life.
You should look for housings constructed from specific grades of stainless steel. These materials provide excellent durability and resistance to corrosion. The SF Series, for example, offers options for:
- SS304: A versatile and cost-effective choice for general applications.
- SS316L: A premium option with enhanced corrosion resistance, ideal for chemical, pharmaceutical, and food-grade processes.
Beyond the base material, you should verify that the housing meets recognized safety standards. Top-tier filter vessels are manufactured in accordance with the ASME Code Section VIII, Division I. This code is a strict standard for pressurized vessels. It guarantees that your housing uses premium materials and construction methods, ensuring it can operate safely under pressure.
Pro Tip: Pay Attention to the Surface Finish A smooth, polished surface does more than just look good. The SF Series features a glass bead blasted finish, and some advanced housings use a process called electropolishing. This creates a microscopically smooth surface that prevents particles from sticking, makes cleaning easier, and significantly improves corrosion resistance.
Prioritize Secure Swing Bolt Closures
Changing a filter bag should be a fast and safe task, not a lengthy ordeal. The type of closure on your filter housing directly impacts your maintenance time. Housings with swing bolt closures offer a major advantage over designs that require special tools or excessive force to open.
Swing bolts allow your technicians to open and close the housing lid quickly and securely. This simple, ergonomic design reduces the physical strain on your team and gets your production line running again with minimal delay. More importantly, this robust closure mechanism is engineered for safety. A housing with a swing bolt closure can handle significant operational pressure. For instance, many are rated for pressures up to 150 psig (10.3 bar), ensuring a tight, reliable seal that prevents leaks even in demanding applications.
Integrate Controls for Process Monitoring
A modern filter housing should do more than just hold a bag. It should provide you with the data needed to optimize your entire process. Integrated ports for controls and monitoring turn your filter from a passive component into an active part of your quality control system.
Essential ports include:
- Vent Ports: These allow you to release trapped air when starting up the system, ensuring the housing fills completely for efficient filtration.
- Drain Ports: These let your team safely depressurize and drain the housing before performing maintenance.
The most valuable integrations are sensor ports for pressure monitoring. By placing pressure gauges at the inlet and outlet, you can monitor the differential pressure. This value is your filter’s real-time health report. A rising differential pressure tells you the filter bag is clogging and needs to be replaced.
This data-driven approach allows you to set up automated alerts. Instead of changing bags on a fixed schedule, your system can tell you the exact moment a change-out is needed. This predictive workflow prevents unexpected shutdowns and optimizes the life of each filter bag. Facilities using this method have reported up to a 28% increase in filter life, saving you money on consumables and labor.
Upgrading your system is a strategic move for your plant’s success. A side entry bag housing filter helps you lower operational costs and enhance worker safety. This investment directly solves common filtration challenges, ensuring you deliver a high-quality product every time.
You will achieve operational excellence and see a faster return on your investment.
FAQ
What industries use the SF Series filter housing?
This filter works in many industries. You can use it for chemicals, food and beverage, petrochemicals, and paint filtration. It is a versatile solution for your plant.
What sizes does the SF Series come in?
You can choose from four standard sizes. The SF Series is available in 01#, 02#, 03#, and 04# sizes to match your plant’s specific flow rate needs.
Can this housing handle corrosive chemicals?
Yes, it handles tough chemicals well. You can choose the SS316L stainless steel option. It gives you excellent protection against corrosion in demanding processes.
