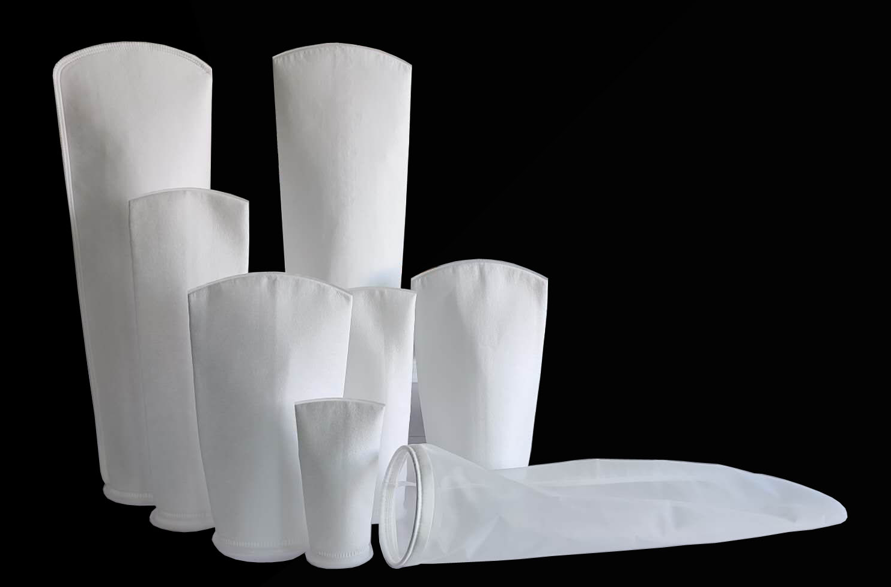

Industrial liquid filtration is a critical process across countless industries, ensuring that debris and unwanted contaminants are effectively removed from process fluids. At the heart of this system lies the filter bag, and its micron rating is arguably the most essential factor dictating system performance, operational cost, and overall longevity.
This rating, typically ranging from 1 to 1,000, is the key determinant of the smallest particle size the bag can successfully trap. Selecting the precise rating is a strategic decision that optimizes contaminant removal, maximizes flow rates, and ultimately extends service intervals for the entire system.
Understanding the Filter Bag Micron Rating
The micron (um) rating is the foundational measurement for industrial filter bags. A micron is a unit of length equal to one-millionth of a meter (10 to the power of -6 meters).
When a filter bag has a rating like 5 um, it means the filter is designed to effectively block and capture solid particles that are 5 microns in size or larger, while allowing smaller particulates to flow through the filter media.
This concept establishes a fundamental rule in filtration: there is an inverse relationship between the rating and the filtration quality. As the micron number decreases, the filtration becomes finer, and the resulting fluid purity increases.
Key Design Trade-offs:
1.Lower Micron Ratings (e.g., 5 um):
·Filtration Quality: These bags capture very fine particles, yielding the highest fluid purity.
·System Impact: The media is inherently denser. This greater resistance slows the fluid, causing a higher pressure drop across the filter.
2.Higher Micron Ratings (e.g., 50 um):
·Filtration Quality: They capture larger debris and are ideal for initial or coarse filtration.
·System Impact: The media has a more open structure, which minimizes resistance. This allows for a higher throughput (flow rate) and a lower pressure drop.
It is crucial to recognize that a micron rating’s real-world performance is always influenced by the application’s specific flow rate and the liquid’s viscosity (thickness).
Micron Rating Applications: From Coarse Pre-Filtration to Fine Polishing
With a spectrum of available micron ratings, it is helpful to understand what specific application requirements correspond to certain numerical ranges:
1-5 um Filter Bags (Critical Purity) These are reserved for applications demanding the highest critical purity where even sub-visible particles must be removed.
·Pharmaceutical and Biotech: Essential for the removal of minute particles in high-purity process water or liquid media preparations.
·Food and Beverage: Utilized in sterile filtration processes, such as juice clarification or dairy product processing, to ensure product safety and clarity.
·Electronics Manufacturing: Crucial for producing ultra-clean rinse waters used in semiconductor and PCB (Printed Circuit Board) fabrication tanks.
10 um Filter Bags (Particulate Control and Fine Polishing) Bags rated at 10 um strike a balance, offering effective particulate control coupled with moderate flow rates or serving as a fine polishing stage.
·Chemical Processing: Used for tasks like catalyst recovery or the fine solids removal necessary during various chemical syntheses.
·Paint and Coatings: Employed to eliminate lumps or pigment agglomerates, ensuring a smooth, defect-free final finish.
·Water Treatment: Often act as a pre-Reverse Osmosis (RO) filter or a final polishing step to protect sensitive downstream membranes and deliver clear water.
25 um Filter Bags (General-Purpose Filtration) The 25 um rating is a common choice for general-purpose filtration, aimed at improving system efficiency and prolonging the service life of equipment.
·Metalworking Fluids: Highly effective in separating metal fines from industrial coolants and lubricant mixtures to maintain fluid integrity.
·Food Processing: Utilized for clarifying substances such as edible oils, syrups, or vinegar prior to the final bottling process.
·Industrial Wastewater: Serves as a primary solids removal stage before the liquid moves on to more advanced downstream treatment or discharge.
50 um Filter Bags (Coarse Filtration and Equipment Protection) These bags excel at coarse filtration and are invaluable for protecting pumps and heavy-duty equipment from larger, more abrasive contaminants.
·Water Intake and Pre-Filtration: As a first line of defense, they are the ideal choice for removing large debris like leaves, sand, and sediment from raw water sources.
·Pre-Coat Protection: Strategically placed in front of finer filters (like 1 um or 5 um) to capture the bulk of large solids, thereby extending the life and service interval of the more expensive fine filters.
·Construction and Mining: Used for the separation of large particulates found in slurry or wash water processes.
Micron Ratings and Filtration Efficiency
The filter’s efficiency—the percentage of particles removed—is a key metric. The micron rating has a direct impact on this efficiency:
| Micron Rating | Description | Typical Efficiency | Ideal Application Stage |
|---|---|---|---|
| 5 um | High-efficiency bags | Over 95 percent of 5 um particles | Critical final-stage polishing |
| 10 um | Capture most fine particulates | Over 90 percent of 10 um particles | Balance of clarity and flow |
| 25 um | Effective at general solid removal | Over 85 percent of 25 um particles | First or second-stage filter |
| 50 um | Excellent for coarse debris | Over 80 percent of 50 um particles | Protecting downstream equipment |
Flow Rate and Pressure Drop Trade-offs Filtration efficiency comes with operational trade-offs related to flow dynamics:
·Smaller Micron Filters: The media is typically composed of finer fibers, resulting in a denser structure. This greater resistance causes a higher differential pressure for any given flow rate.
·Larger Micron Filters: The more open media structure allows fluid to pass through with less resistance. This translates to a lower pressure drop and a significantly higher fluid capacity.
Filter Life and Maintenance The filter bag’s micron rating also dictates its service life and maintenance requirements:
·Fine Filters (1–10 um): Because they trap much smaller particles, they tend to load up with particulates more quickly. This necessitates a shorter service life and more frequent changeouts. Therefore, pre-filtration with a coarser bag is almost always required to optimize their use.
·Coarse Filters (25–50 um): Their open structure allows them to hold significantly more debris before the flow resistance causes clogging. This translates to longer intervals between replacements, reducing maintenance frequency and costs.
Selecting the appropriate filter bag requires a complete understanding of your application’s unique demands and the way the micron rating influences efficiency, pressure, and running life. Correct selection is the key to an effective and economical industrial filtration system.
